Concrete-filled Composite Steel Plate Shear Wall

Nucor Construction Solutions

Website: https://nucor.com/

Concrete-filled Composite Steel Plate Shear Wall

Nucor Construction Solutions – All Regions

The Concrete-filled Composite Steel Plate Shear Wall (CF-CPSW) comprises sandwiched panel of steel plates that are filled with concrete. Cross-connecting tie rods hold two structural steel plates in place, providing stability prior to concrete fill. Once erected, the panels are filled with concrete and left in place.

References

  • https://www.aisc.org/why-steel/innovative-systems/SpeedCore/#55715

Characteristics

  • Speed of construction: There is no delay from waiting for concrete to cure. Construction can proceed because the steel plates serve as both formwork as well as gravity support for floor framing.
  • Precision: Tolerance issues between concrete embed plates and steel framing are eliminated because they can be
    welded directly to the steel plate.
  • In addition to seismic load resistance, the assembly is also well suited for blast resistance.

Applications

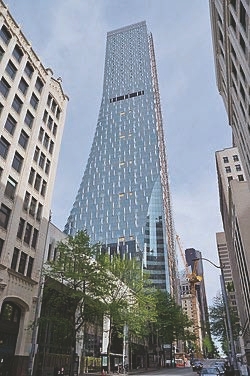

Rainier Square Tower (Seattle, Washington, USA) – 2020

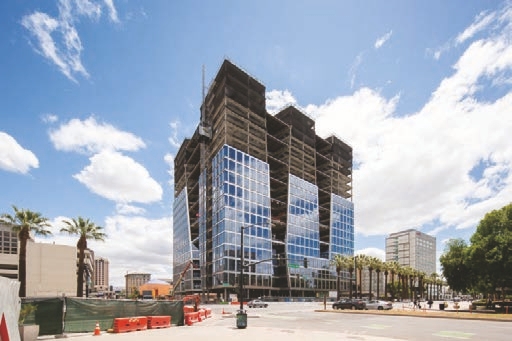

200 Park (San Jose, California, USA) – 2022

Categories

Prevention Solution, Earthquake
