Steel Plate Shear Wall
Steel Plate Shear Wall
Nucor Construction Solutions – All Regions
- Steel plate shear wall (SPSW) is a lateral force resisting system developed in the 1970s. The system comprises a thin steel web – plate bounded by and attached to its surrounding portal frame.
- They can be configured as a core system, for medium – to high-rise buildings, or as multiple planar shear walls, for low-rise buildings and rehab of existing structures.
References • https://www.aisc.org/globalassets/modern-steel/archives/
2005/04/2005v04_steel_plate.pdf
Characteristics
- Speed of construction : As an alternate to concrete shear walls, there is no curing time involved in using steel plate shear walls. Therefore, construction schedule can be shorter.
- Lighter structure : Overall weigh of building decreases, which allows for lighter foundations.
- Existing buildings have withstood heavy earthquakes, such as the Northridge Earthquake in 1994.
Applications
First: US Federal Courthouse
(Seattle, Washington, USA) – 2004

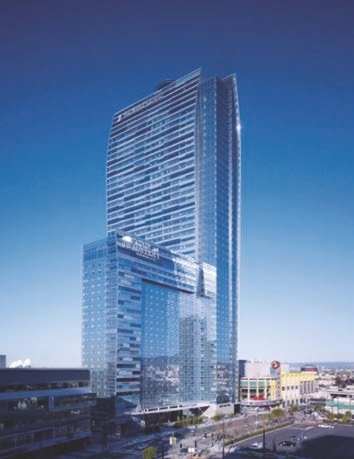

Second: The Ritz-Carlton Los Angeles
(California, USA) – 2010
