Steel Sheet Piles
Japan Iron and Steel Federation – All Regions
Earthquake resistance measures of embankment structure on liquefying soil foundation
Characteristics

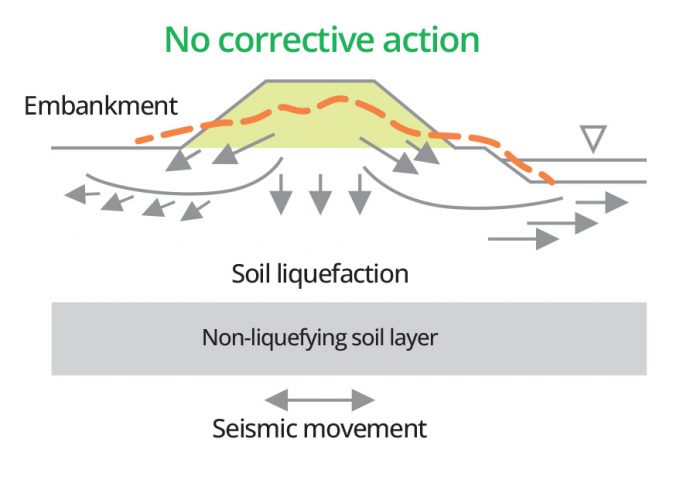

- Embankment structures slip and collapse, sink, crack or change in other ways if the foundation liquefies.

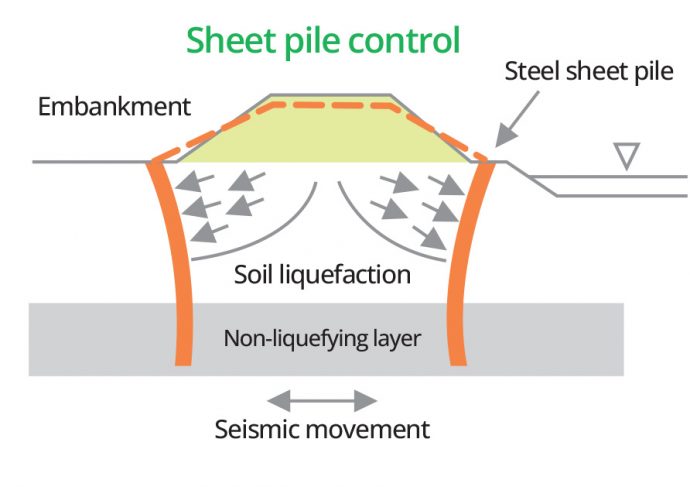

- Steel sheet piles are installed by driving them deep into non-liquefying soil layer at locations near the foot of the slope of embankment on liquefying soil foundation.
- Driving high-quality steel sheet piles at the foot of embankment declining in foundation rigidity control the deformation of liquefying soil foundation and collapse of embankment structures.

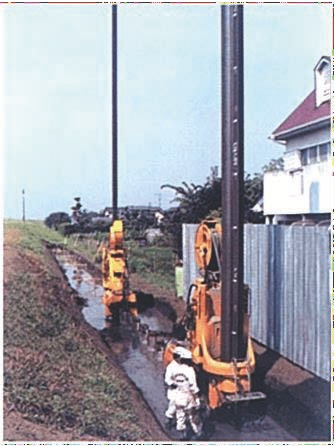

- Ease of work at narrow construction space
- Work with steel sheet piles minimises the required work width compared with soil improvement method.
- Work is fast and easy even in narrow space.
- Work is possible while the facilities such as railway are in operation.
- Environment-friendliness
- Without producing industrial waste
- Low-vibration and low-noise work can be applied.
- Setting the hole for seepage at steel sheet piles can avoid influence of groundwater cutoff.
- Reduction of construction cost and period.
- Construction cost and period can be reduced by applying steel materials.
# Summary from “Liquefaction Prevention and Seismic Resistance Measures Employing Steel Materials,” Japanese Technical Association for Steel Pipe Piles and Sheet Piles
Applications
In Japan many records:

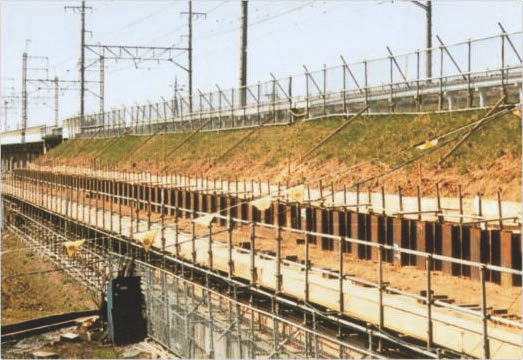

- Rubble mound at railroad:
Musashino Line, Tokaido Shinkansen (Nagoya) - Rubble mound at river:
Tone River, Yodo River, Shinano River, Sira River,Midori River etc.
