Wave-type Stainless Steel Water Tank
Wave-type Stainless Steel Water Tank
POSCO – All Regions

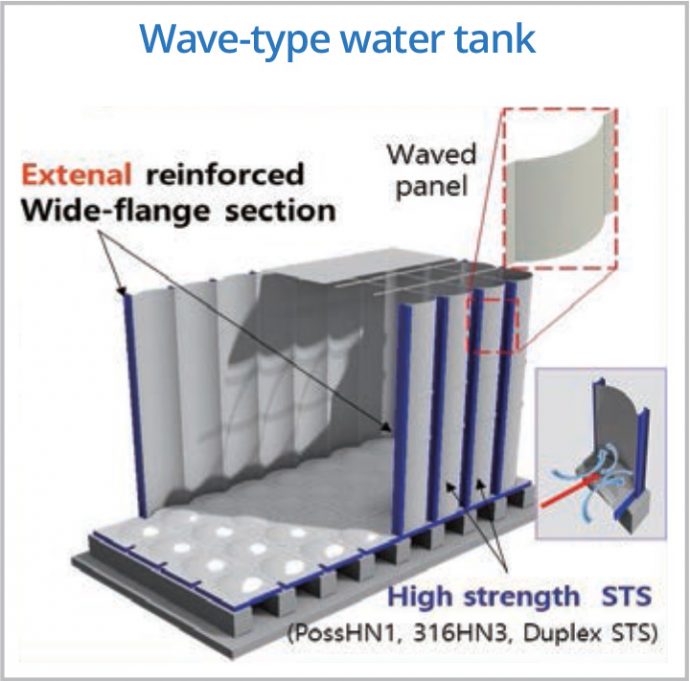

- The wave panel has the excellent water pressure distribution and reduces sloshing in the event of an earthquake.

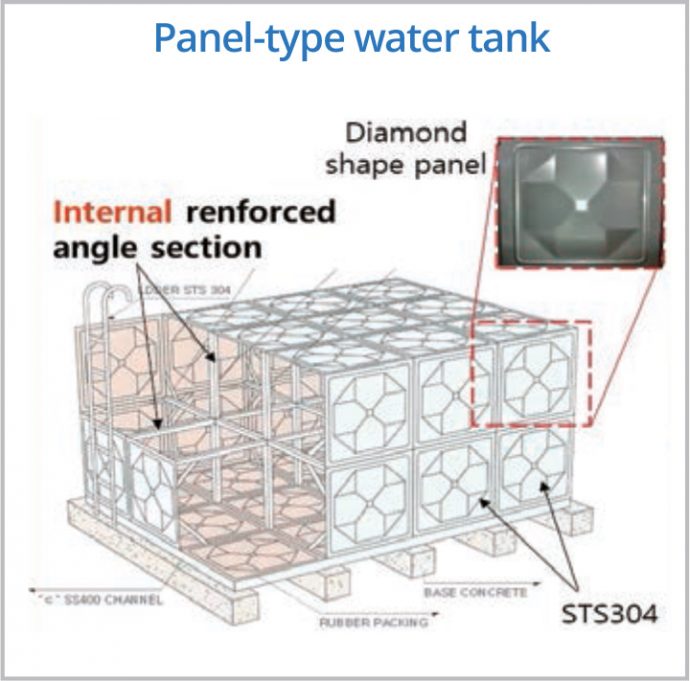

- Since there is no reinforced frames inside the water tank, cleaning is easy and maintenance is convenient.
Characteristics

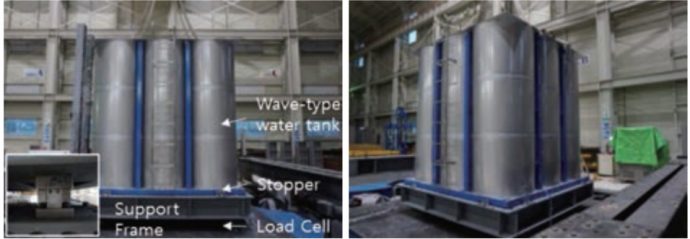

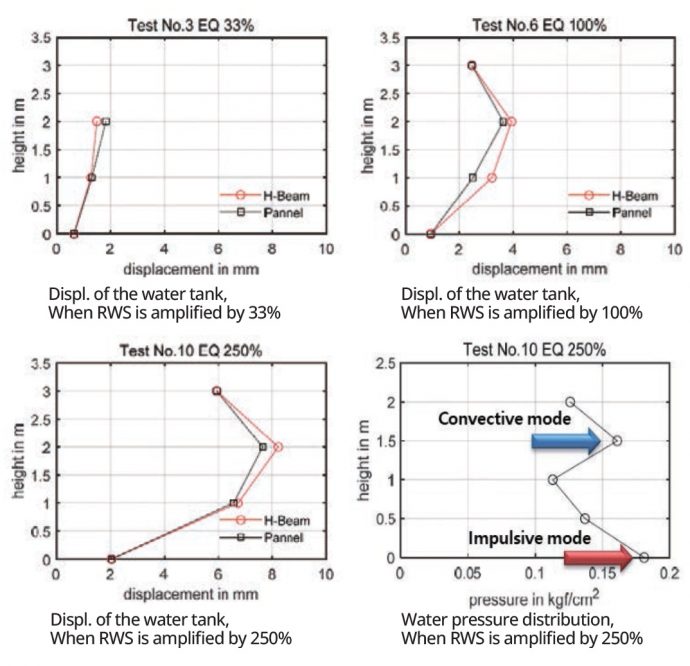

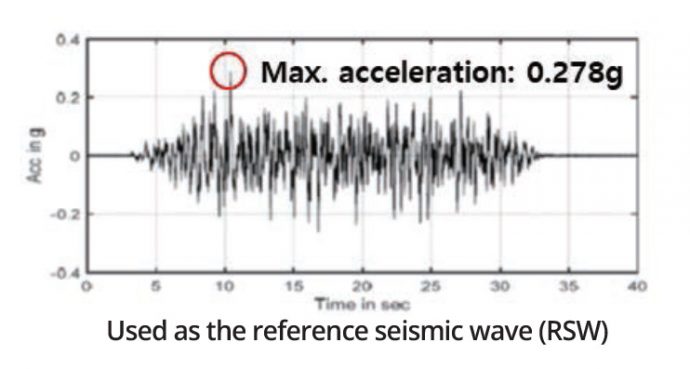

Earthquake simulation experiment using the shaking table. Applied by 2.5 times the reference seismic wave(RSW)(0.278g)
Capacity : 30 tons (3.16 m x 3.16 m x 3.0 m, Max. water level : 2.0 m)
Applications

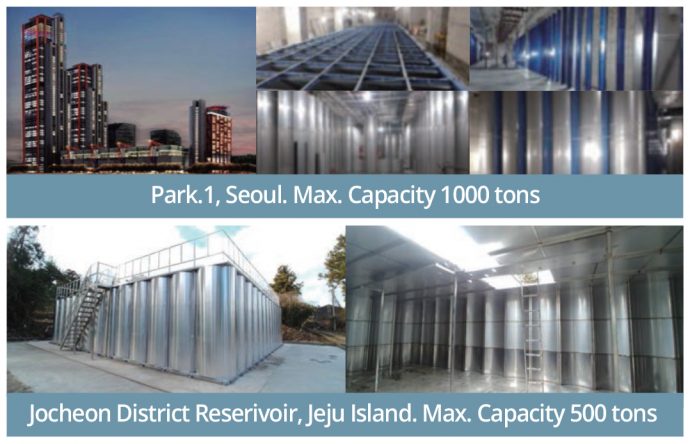

Park.1, Seoul. Max. Capacity 1000 tons
Jocheon District Reserivoir, Jeju Island. Max. Capacity 500 tons
