Steel-framed Storm Shelters
Steel-framed Storm Shelters
Nucor Construction Solutions – All Regions
Storm shelters are provided for the protection of people during high wind events, such as hurricanes or tornadoes. While they may be residential shelters or safe rooms within a home, they can also be standalone structures located in a community, such as a school.
Storm shelters are designed to withstand gravity, wind, flood, and seismic loading, as applicable to its location. Moreover, design should also include impact loads of wind-borne debris.
Design resources : American Institute of Steel Construction (AISC) Design Guide 35, ICC 500, FEMA P-361.
- https://www.aisc.org/publications/design-guides/
- https://codes.iccsafe.org/content/ICC5002020P1
- https://www.fema.gov/sites/default/files/documents/fema_safe-rooms-for-tornadoes-andhurricanes_p-361.pdf
Characteristics
- Durable roof structure : poured concrete on steel deck provides reliable strength against wind-borne debris. Structural steel, cold-formed steel trusses and purlins, open-web steel joists, and HSS all provide reliable framing for various building size options. All can be safely detailed to resist extreme uplift.
- Steel Columns, whether wide-flange, built up, or HSS columns, can be used.
- Exterior walls : To resist high wind loads and projectiles, Reinforced masonry, tilt-up concrete, precast concrete, or steel deck composite materials are recommended.
Applications

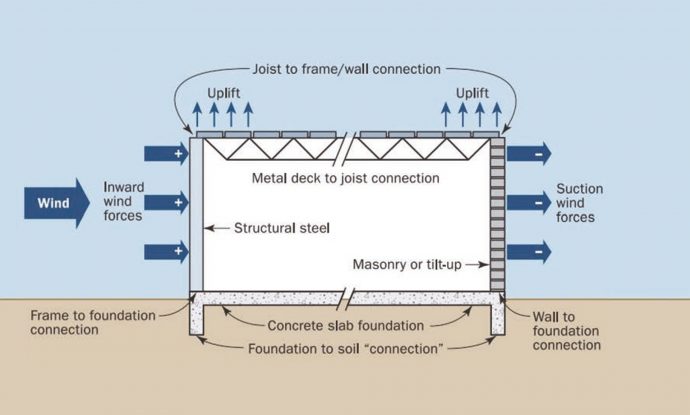

Critical connections important for providing a continuous load path in a typical masonry, concrete, or metal- frame building wall (for clarity, concrete root deck is not shown)
