Steel Sheet Piles

Japan Iron and Steel Federation

Tel: +81 3 3669 4815
Website: https://www.jisf.or.jp/en/

Steel Sheet Piles

Japan Iron and Steel Federation – All Regions

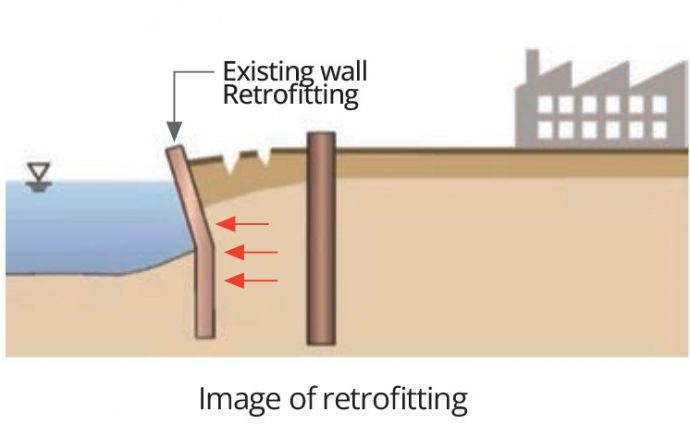

Method of controlling lateral flow of the ground by means of seismic retrofit applying steel material either at hinterland or in front of revetment.

Characteristics

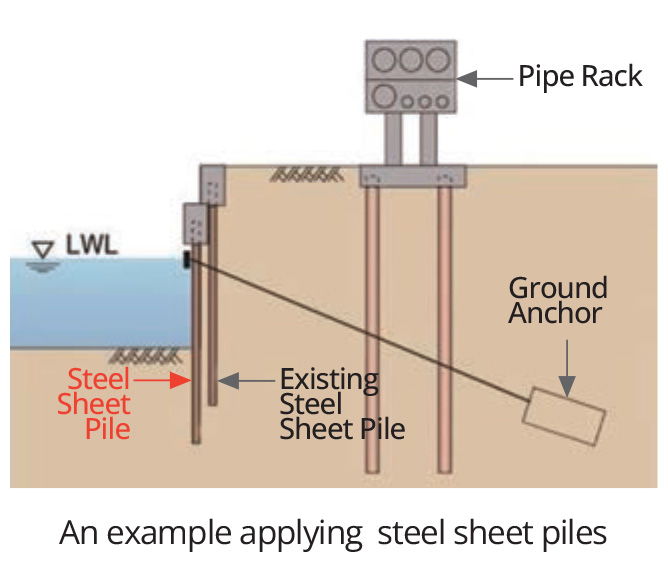

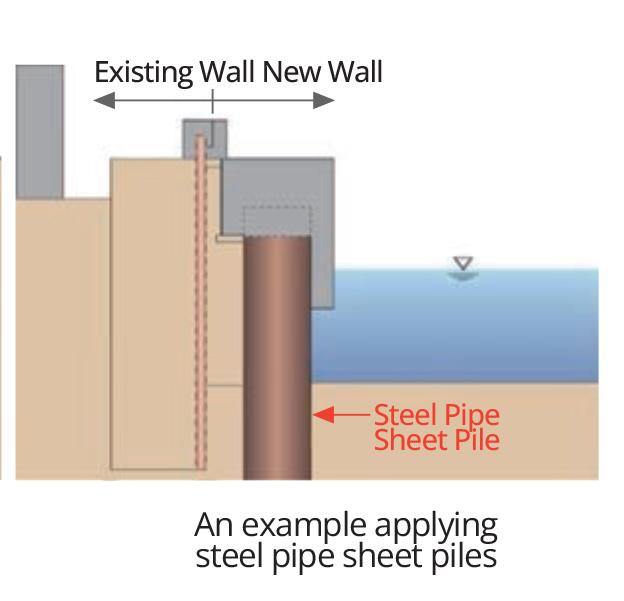

Method of seismic retrofit applying steel sheet piles, steel pipe sheet piles and other steel materials as a measure to control lateral flow of the ground which occurs with liquefaction etc, in an earthquake at revetment

Rapid construction
Utilising hinterland space makes easy construction

Preservation of existing structure
Both modification of existing structure and large alteration of berth line is unnecessary

Effective in combination of other purpose

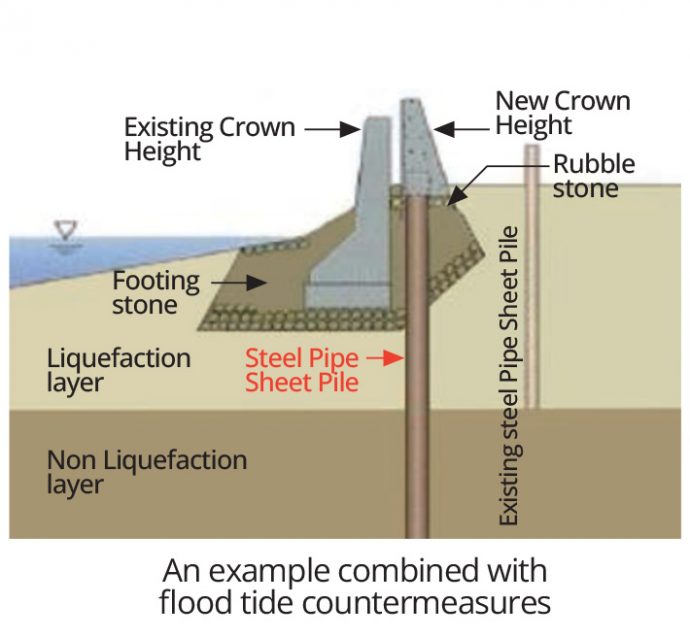

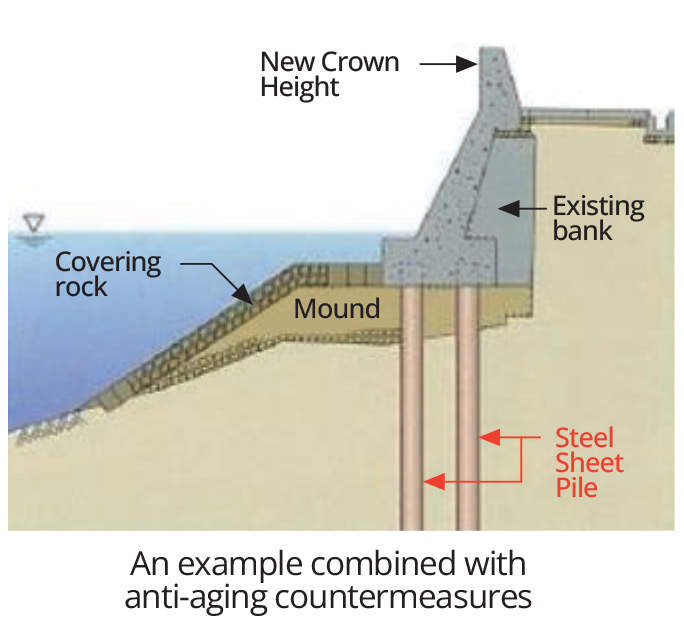

Combination with countermeasures against flood tide or anti-aging is also possible

Applications

Applicable sector

  • Revetment Disaster
  • Prevention

Track record
Japan 5 ~ 10 cases

Standard condition of applications

  • Water depth··· ~ Approx.10m
  • Location ··· Coast, River
  • Type of existing foundation ··· Gravity, Piled

For other conditions than the above, please contact the company stated below.

Categories

Restoration Solution, Infrastructure
