TAS Pile

POSCO – All Regions

1. In the event of an earthquake, most of the damage is caused by the lack of bearing capacity of the foundation or by the horizontal force acting on the upper part of the pile.

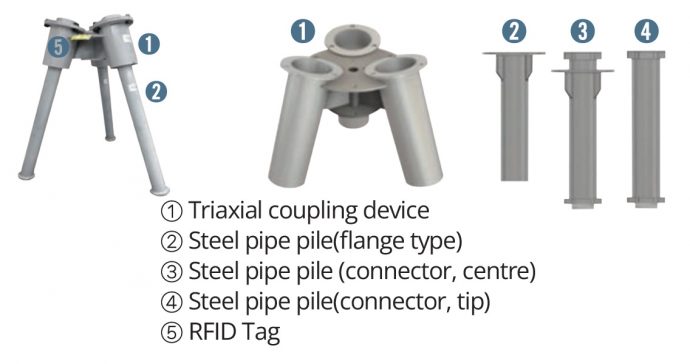

2. The triaxial seismic pile(TAS Pile) is designed to secure stability when bearing capacity and horizontal force are insufficient in the foundation.

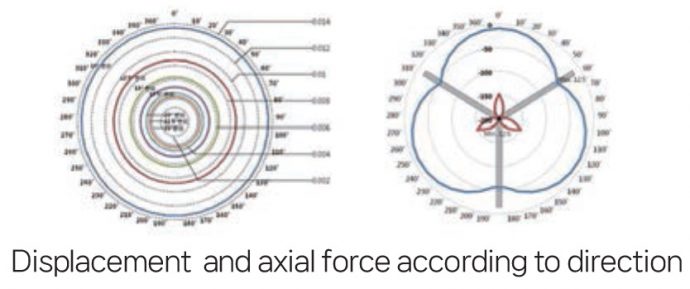

3. The triaxial seismic pile is a structure that resists horizontal loads equally in all directions, and has excellent horizontal and vertical resistance.

---

Characteristics

• Optimised construction method for small house construction in urban areas.

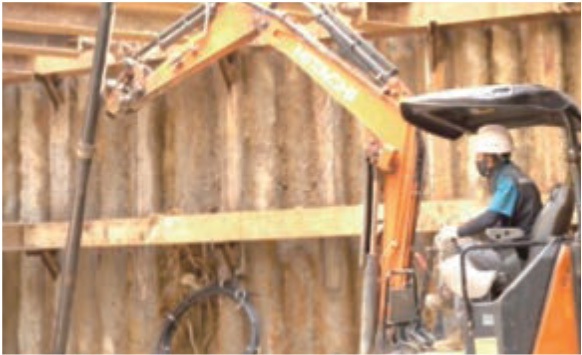

• Designed to install piles with small equipment, enabling construction in narrow places.
• Seismic performance can be secured in buildings where existing large-diameter seismic piles cannot be applied.
• The triaxial seismic pile is a structural system that resists horizontal loads equally in all directions, and has excellent horizontal and vertical resistance due to the effect of installing truss columns at the bottom of the building.
  • Vertical : applicable 30~100 tonf
  • Horizontal : displacement occurs within 100mm under 5~20tonf

Specification(mm)	Vertical load resistance(KN)	Horizontal load resistance(KN)			Inclination Angle(°)
D : 89.1 t :  6.0	300	30	45	60	15˚ 20˚ 25˚
	450	45	67.5	90
	600	60	60	120
D : 114 t : 9.0	750	75	75	150	15˚ 20˚ 25˚
	1000	100	100	200
	1250	125	125	250

---

Applications

1. Ganhyeon-ri, Jijeong-myeon, Wonju-si – 2020
2. Anyang-dong 528-3 – 2021
3. 733 Gyeongsu-daero, Dongan-gu, Anyang – 2021
4. 15 Beobwon-ro, Osan-si – 2021
5. Anyang-si Surisan-ro – 2021
6. Gasan Digital 2-ro, Geumcheon-gu – 2021

---
