Footbridge Toolkit
Footbridge Toolkit
ArcelorMittal – All Regions
- The footbridge toolkit provides an integration of products and services, establishing an ecosystem in the production chain.
- The economic impact is reduced by up to 25% (comparing with baseline solutions) and the time and physical space for interventions are reduced, mitigating / eliminating risks for the team and third parties.
Characteristics
Activities (and products) carried out to reduce the total erection time :

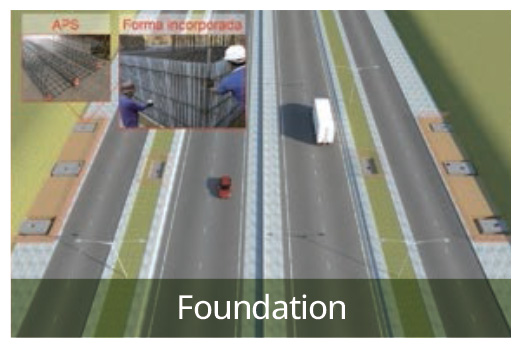

- Step #1 | Foundation – Use pre-assembled welded rebars with steel permanent formwork

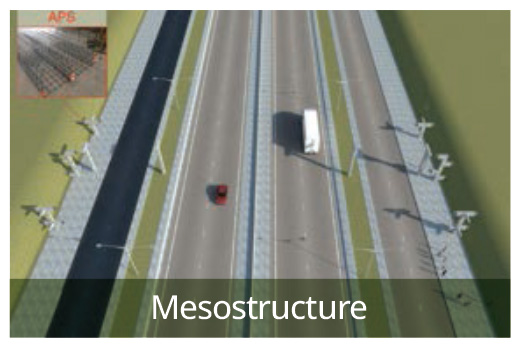

- Step #2 | Mesostructure – Use of precast columns

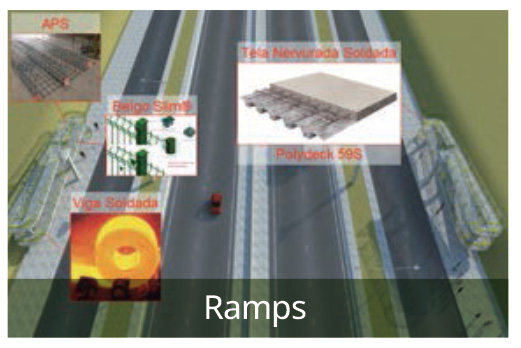

- Step #3 | Ramps – Composite structure (steel deck and steel beams – built-up sections)

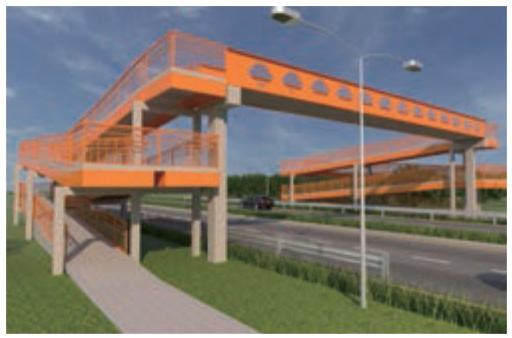

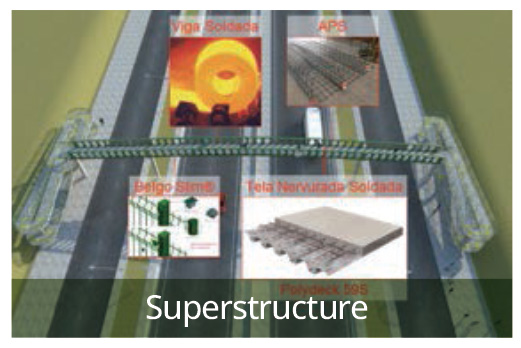

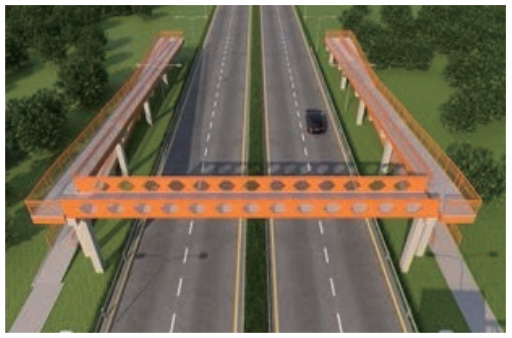

- Step #4 | Footbridge – Composite structure (steel deck and truss / steel beams – cellular or angelina beams)
Applications

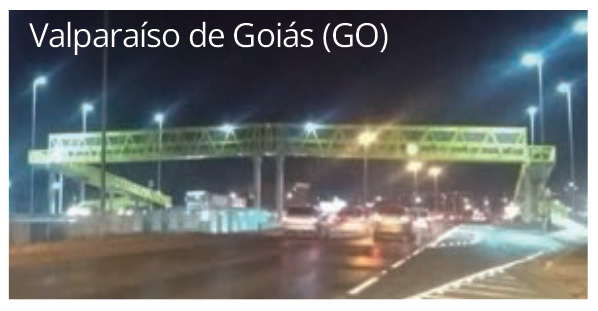

- Valparaíso de Goiás (GO) – 1 footbridge 2023

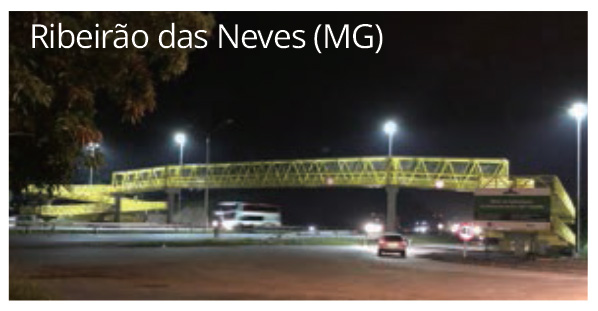

- Ribeirão das Neves (MG) – 1 footbridge2023

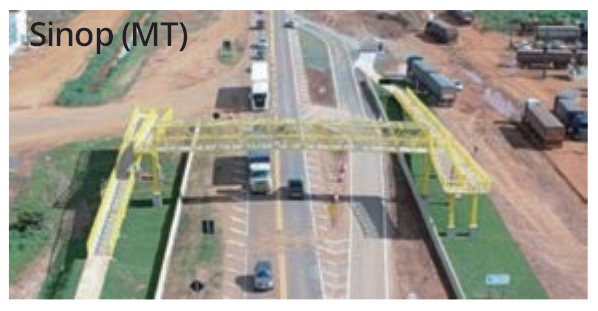

- Sinop (MT) – 1 footbridge 2023
- Espírito Santo – 8 footbridges 2023
- Marília (SP) – 2 footbridges (on-going) 2023
- Oriente (SP) – 1 footbridge (on-going) 2023
- Assis (1) – 1 footbridges (on -going) 2023
