Cladding Structure
Cladding Structure
POSCO – All Regions

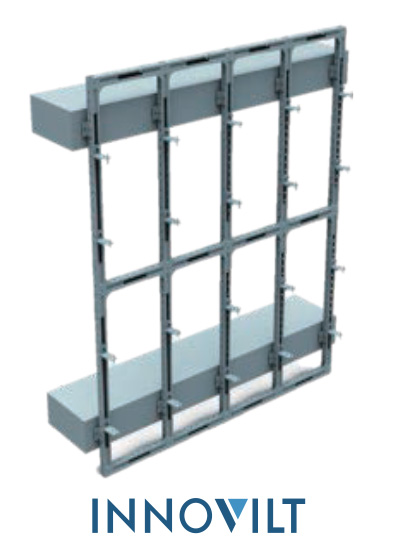

The non-welded cladding system is highly effective for seismic performance.

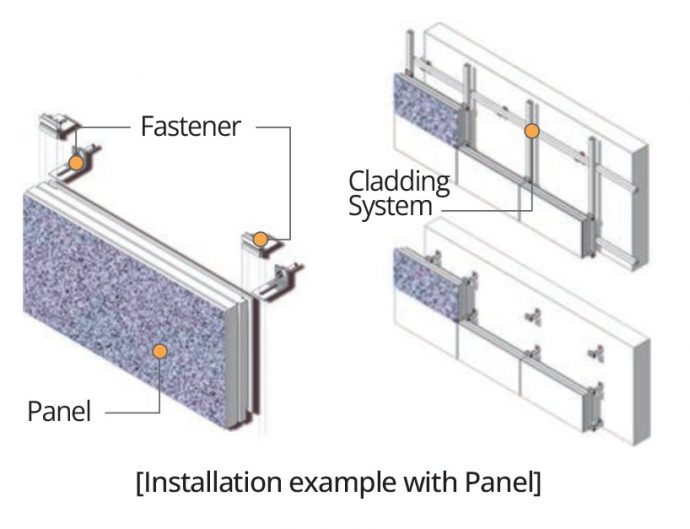

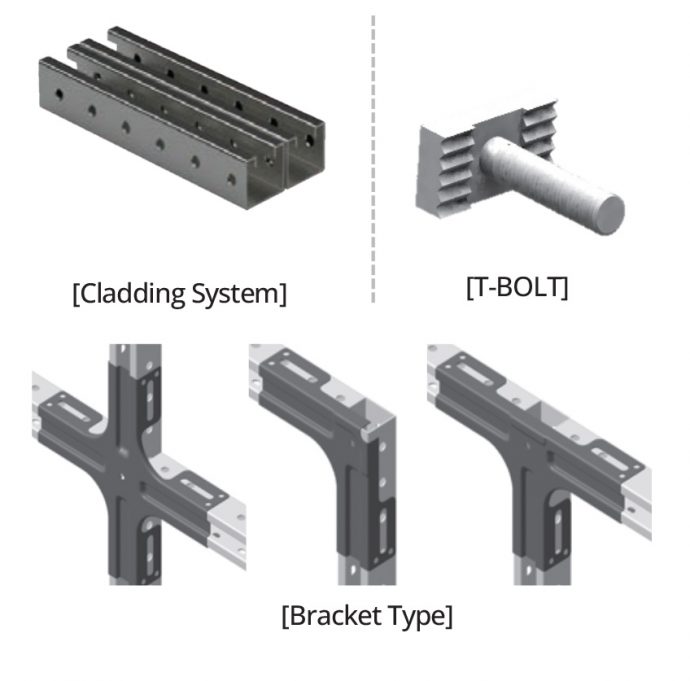

Brackets and bolts in its design allow for easy installation.
Thorough testing was conducted to validate its performance.
Characteristics
The Saw-tooth of Cladding System is designed stand up to heavy panels.

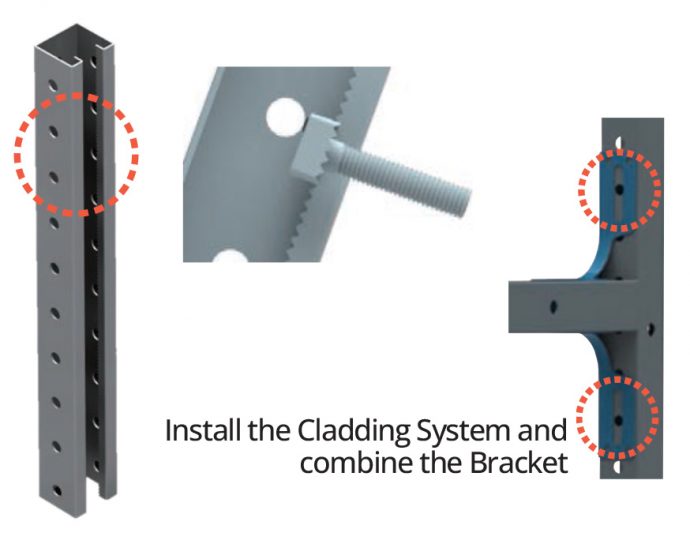

Increase the holding force by combined in T-Bolt with Saw-tooth shape.

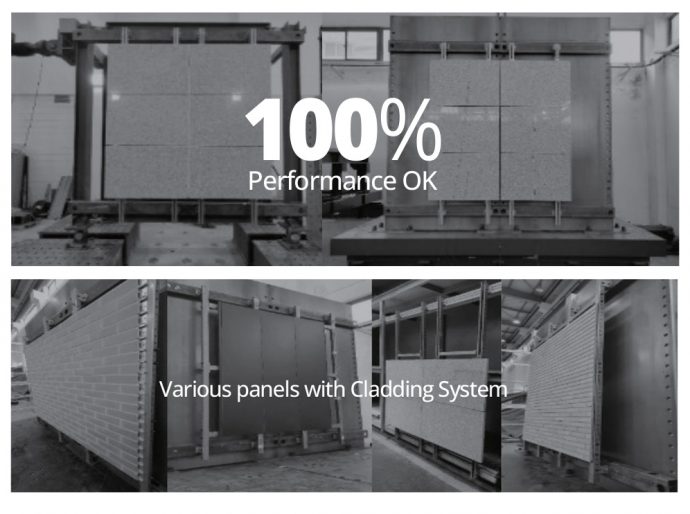

- The cladding system underwent performance tests with different panels, and all tests confirmed its excellent seismic performance.
- The product successfully prevented panel failure or deformation during the seismic test.
Applications
1 School Dormitory 2023 [Forecast]
2 Sports Center 2024 [Forecast]
3 Tower 2025 [Forecast]
